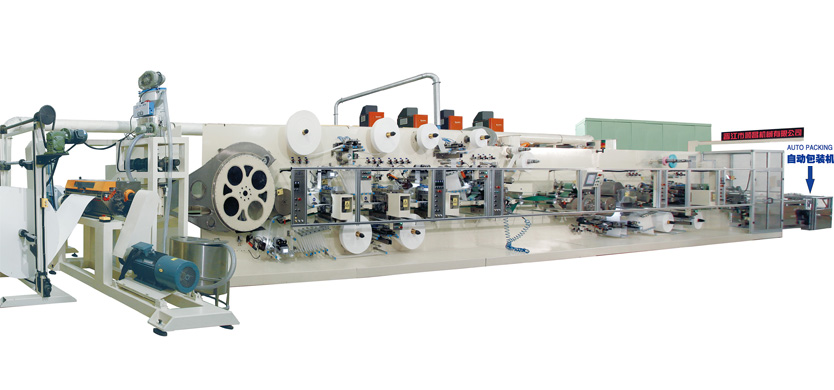

Pantyliner Production Line

Main Technical Data
Working Speed(Production speed)
800pcs~1500pcs/minute
Working Speed(Linear web speed)
Up to 220meters/minute
Power supply
380V 50HZ, Tri-phase
Installation power capacity
135~185KW
Air consumption
1800~4800l/minute
Qualified rate
≥98%
Product width(min~max)
65~100mm
Product length(min~max)
155~200mm
Dimensions(L×W×H, Meters)
L: 20~25
W: 4.5~6
H: 3~4.5

Technical features
Compact design, easy
operation&maintenance
Modular design, for future upgrading
Low consumption, high efficiency
Servo or frequency inverter
transmission
Touch screen for man-machine
conversation
Auto record and calculation of
process data
Main raw material auto splicing at
zero speed
Inverter or servo unwinding with
tension control
Web guiding controller
Sensor quality control systems
Material broken and lost inspection,
auto machine stop and defective
products auto rejection
Easy size changing and manufacture
CE approval
Basic process configuration:
High speed pulverizer(untreated
pulp is allowed)
Fluff forming unit
SAP dosing unit
Raw material feeding units
Inner cutter unit
Product 90°transverse turning
Final cutter unit
Pouch film application unit
Air application unit
Safety protection unit
Optional process configurations:
Aloe/perfume application unit
Gravimetric SAP dosing unit
Camera quality detection unit

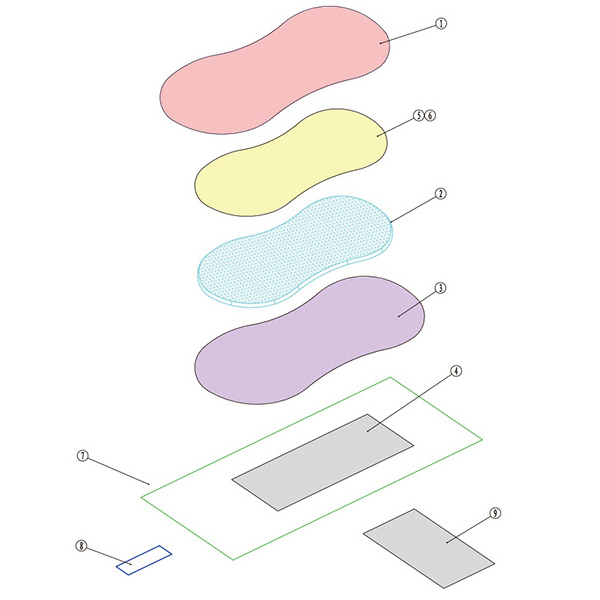

Raw material specifications
Item Number
Raw material layer
1
Hydrophilic N.W.(for top sheet)
2
Hydrophobic N.W.(for standing cuff)
3
Acquisition&distribution layer N.W.
4
Fluff core pad
5
SAP(super absorbent polymer)
6
Upper tissue
7
Lower tissue
8
Back sheet PE
9
Back sheet(clothlikes)
10
Magic tape(with hook)
11
Frontal pad
12
Leg elastics
