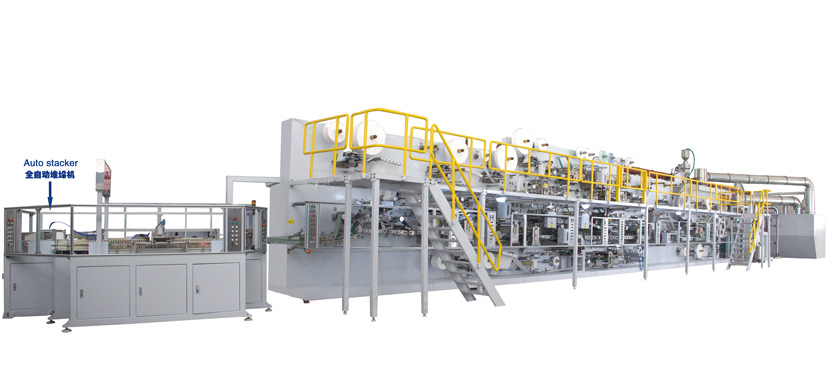

T Shape Elastic Ear Baby Diaper Production Line

Main Technical Data
Working Speed(Production speed)
400pcs~45pcs/minute
Working Speed(Linear web speed)
Up to 220meters/minute
Power supply
380V 50HZ, Tri-phase
Installation power capacity
265~330KW
Air consumption
1800~4800l/minute
Qualified rate
≥98%
Product width(min~max, for diaper)
210~230mm
Product length(min~max, for diaper)
320~550mm
Dimensions(L×W×H, Meters)
L: 25~30
W: 4.5~8
H: 3.5~4.5

Technical features
Compact design, easy
operation&maintenance
Modular design, for future upgrading
Low consumption, high efficiency
Servo or frequency inverter
transmission
Touch screen for man-machine
conversation
Auto record and calculation of
process data
Main raw material auto splicing at
zero speed
Inverter or servo unwinding with
tension control
Web guiding controller
Sensor quality control systems
Material broken and lost inspection,
auto machine stop and defective
products auto rejection
Easy size changing and manufacture
CE approval
Basic process configuration:
High speed pulverizer(untreated
pulp is allowed)
Fluff forming unit
SAP dosing unit
Raw material feeding units
Elastic ear application unit
Notch cutter Unit
Longitudinal folding unit
Final cutter unit
Transverse folding unit
Air application unit
Safety protection unit
Optional process configurations:
Two fluff forming units
Aloe/perfume application unit
Gravimetric SAP dosing unit
Full servo auto stacker
Camera quality detection unit

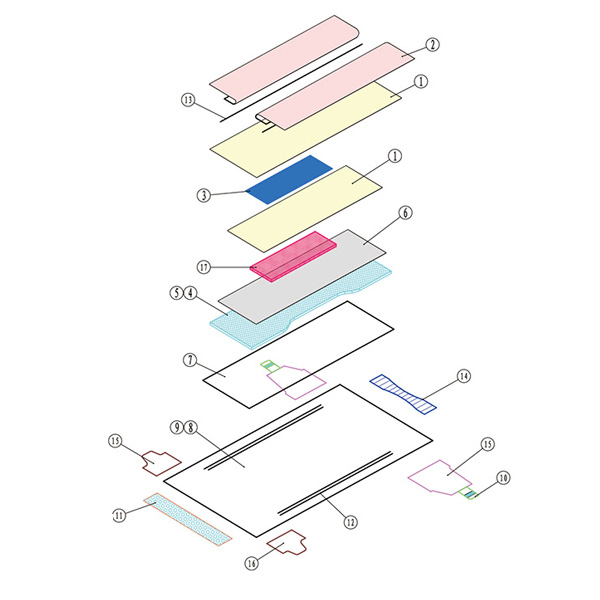

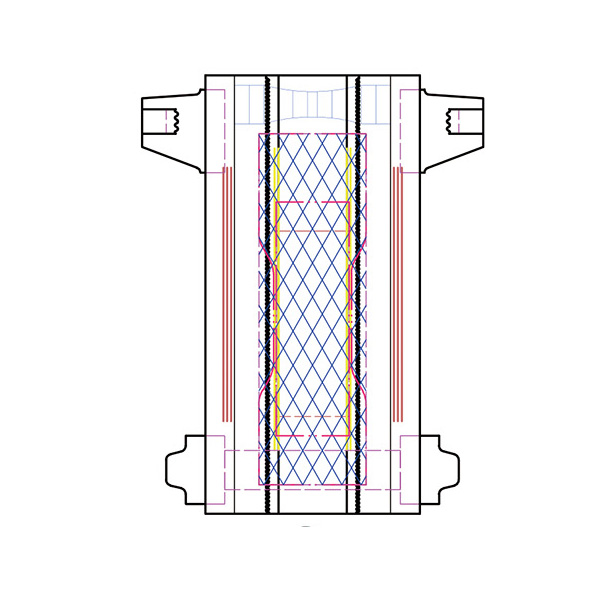

Raw material specifications
Item Number
Raw material layer
1
Hydrophilic N.W.(for top sheet)
2
Hydrophobic N.W.(for standing cuff)
3
Acquisition&distribution layer N.W.
4
Fluff core pad
5
SAP(super absorbent polymer)
6
Upper tissue
7
Lower tissue
8
Back sheet PE
9
Back sheet(clothlikes)
10
Magic tape(with hook)
11
Frontal pad
12
Leg elastics
13
Leak elastics(for standing cuff)
14
Waist band
15
Back ear(N.W. or Elastics)
16
Frontal ear(N.W. S cut)

T Shape Elastic Ear Baby Diaper Production Line
